Specifications
Multi-voltage input 12-24VDC.
LEDs rated to 100,000 hours of operation.
Non-volatile memory recalls last flash pattern used at power up.
Multiple units are synchronizable and can flash simultaneously or alternately.
Weatherproof and vibration resistant for external or internal use.
Reverse polarity protection.Product Specifications

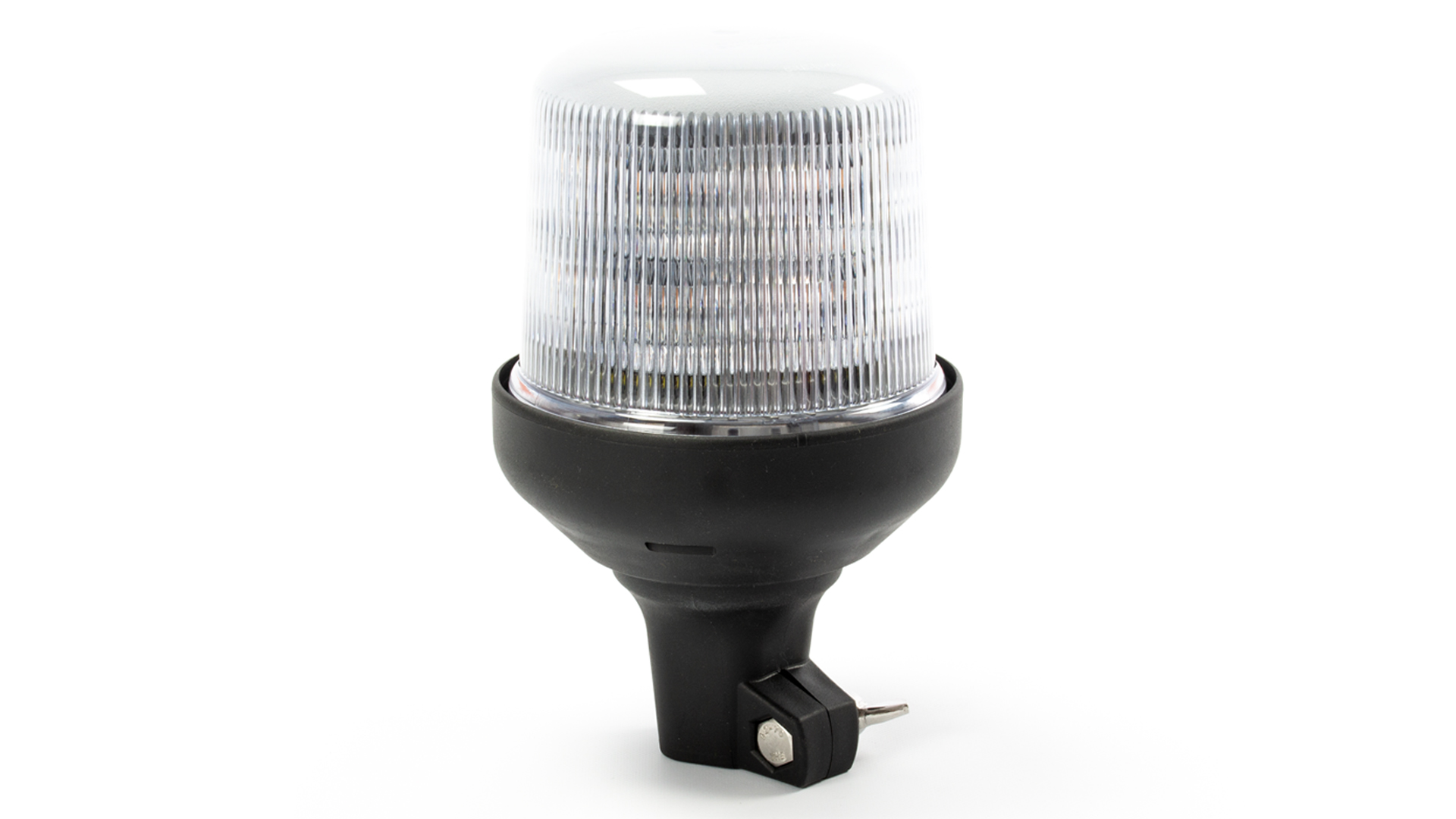

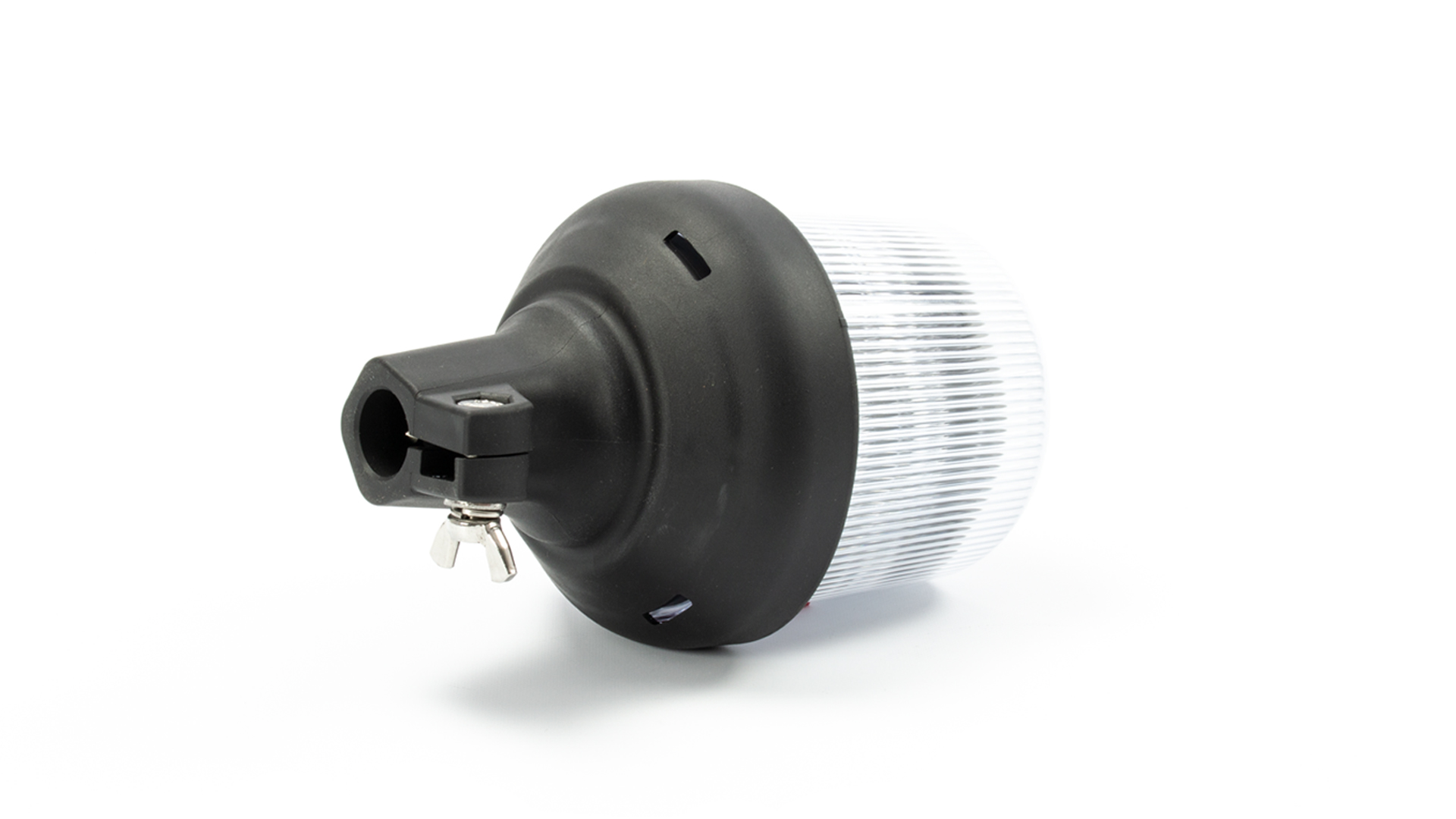

Product code 05190287 Product Name B14 Beacon - AC (DIN Pole Mount) Categories Lighting, Beacons, B14 Beacons Product Type Products Dimensions Height 202mm Colour Type Single Colour Maximum Current 3.3A@12VDC / 1.75A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 42W Synchronisation 4 Unit Sync Diameter ⌀142mm LED Colour Amber LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TA1, CAA, EASA, ICAO, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option DIN Pole Mount LED Quantity 10x LEDs IP Rating IPX5 Flash Patterns 14 Flash Patterns Warranty 5 Year Warranty -
