EAN: 06080235

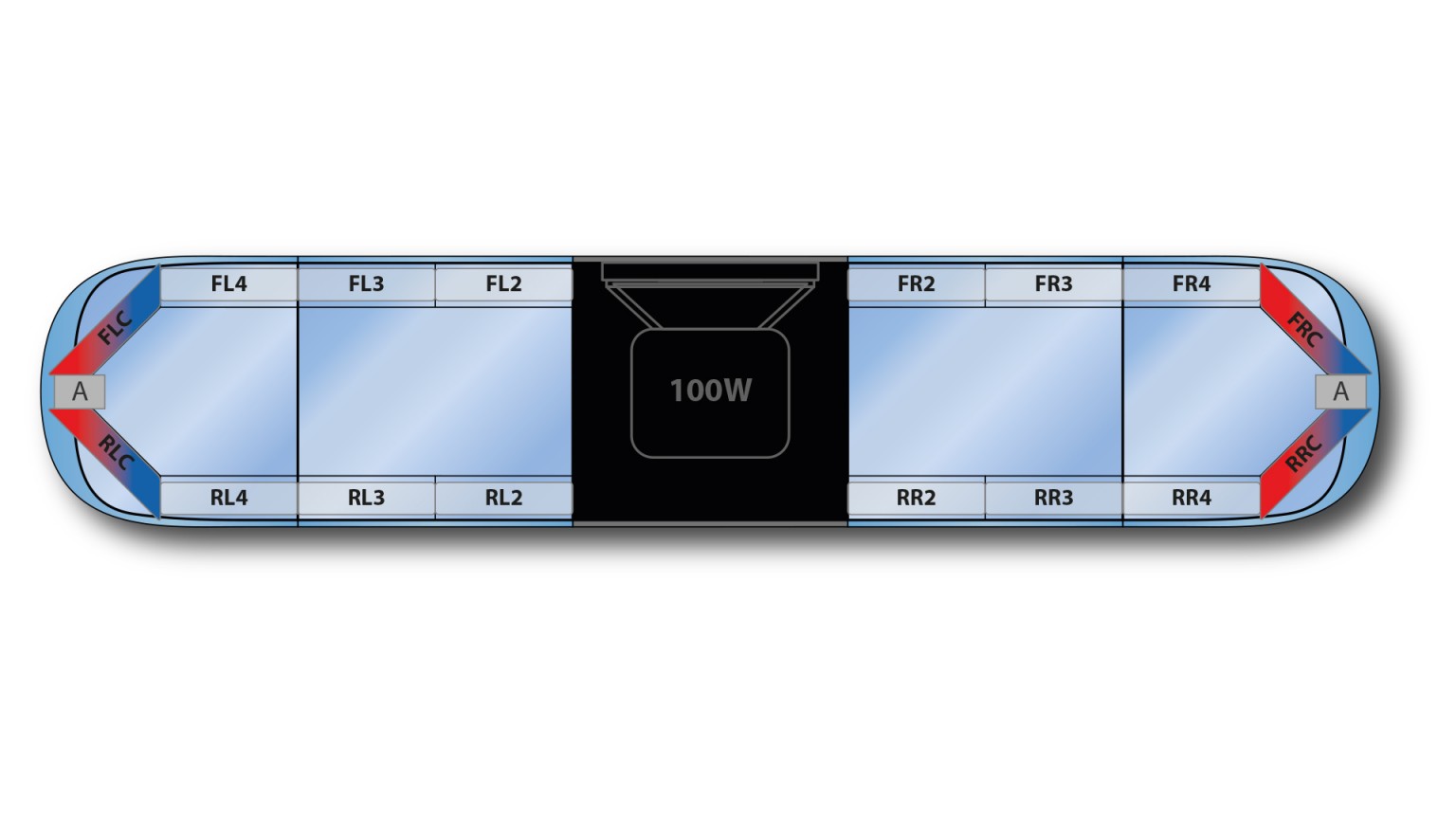

Aegis DC H002 Speaker Lightbar, 1522mm (59.9″), 72x RED/BLUE LEDs, BLUE COVERS, ECE R10, ECE R65 (TR2/TB2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, 2 Cable Harness (16 Function/4 Power/2 Speaker), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.
100w built-in speaker.Product Specifications
Product code 06080235 Product Name Aegis DC H002 Speaker 1522mm (59.9") - BRB (12VDC) Categories Warning Lamps, Lightbars, Aegis Dual Colour, Aegis DC H002 Speaker, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs, Traffic Director Dimensions Length 1522mm (60") Default Functions Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Take-Down Lights (2 heads, Left-Side Alley Light, Hi/Low Power (50%, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Speaker Power Rating 100W Dimensions Height 83mm (3.25") Dimensions Width 310mm (12.2") Colour Type Dual Colour Maximum Current 27.3A@12.8V Lightbar Length 1522mm (59.9") Speaker Impedance 10-13 Ohms Speaker Type H002 LED Colour Blue LEDs, Red LEDs Cover Colour Black Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB2), ECE-R65 (TR2), SAE J845 Class 1, CA13 Optic Type D-Fuser Optics Input Voltage 12VDC Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Net Weight 17.6g Gross Weight 18.6kg Dummy Bracket Qty 12x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
- Lightheads
- Alley
- Single Colour
- 2 Pin Connector
- Spot Optics
-
- Lightheads
- Warning
- Dual Colour
- Smaller 3 Pin Connector
- Linear Optics
-
- Lightheads
- Take-Down
- Single Colour
- Smaller 3 Pin Connector
- Spot Optics
-
- Lightheads
- Take-Down
- Single Colour
- Smaller 3 Pin Connector
- Spot Optics
-
- Lightheads
- Dual Layer
- Linear Optics, T.I.R Optics
- 12VDC
- Middle Lighthead
-
- Lightheads
- Dual Layer
- Linear Optics, T.I.R Optics
- 12VDC
- Middle Lighthead
-
- Lightheads
- Dual Layer
- Linear Optics, T.I.R Optics
- 12VDC
- Middle Lighthead
-
-
- Base Plates
- Polycarbonate (PC)
- H002
- Middle
- Large, 312mm (12.3")
-
- Lenses
- Polycarbonate (PC)
- Middle
- Large, 312mm (12.3")
- Clear Lens
-
-
-
-
- Lightheads
- Warning
- Dual Colour
- Smaller 3 Pin Connector
- D-Fuser Optics
-
- Lightheads
- Warning
- Dual Colour
- Smaller 3 Pin Connector
- D-Fuser Optics
-
-
-
- 100W
- Acrylonitrile Butadiene Styrene (ABS), Aluminium
- 100W
- H002
- 10-13 Ohms
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
