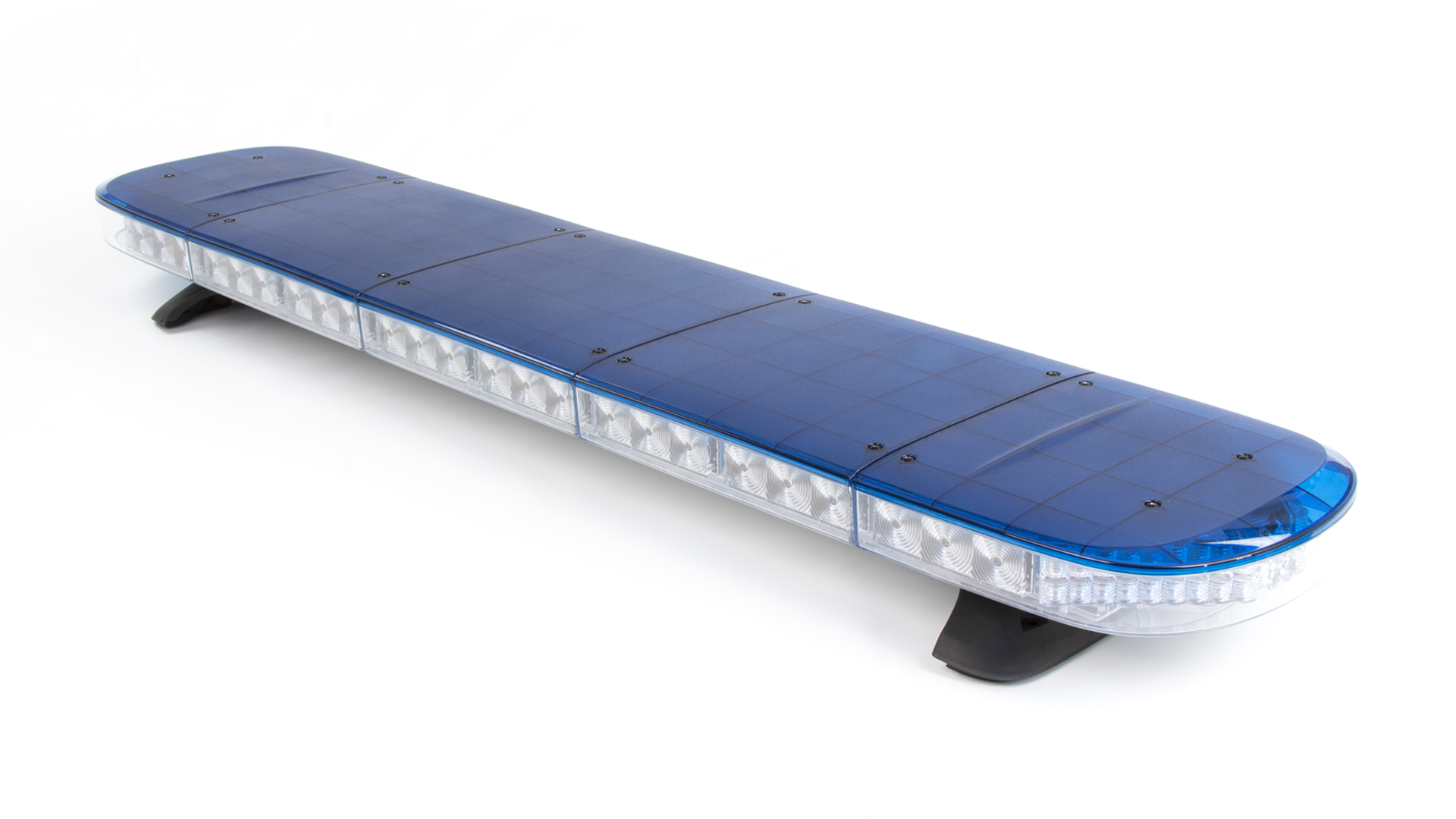

Aegis Dual Colour Lightbar, 1522mm (59.9″), 72x BLUE/RED LEDs, BLUE COVERS, ECE R10, ECE R65 (TB2/TR2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications
Product code 06060220 Product Name Aegis DC 1522mm (59.9") - BRB (12VDC) Categories Warning Lamps, Lightbars, Aegis DC Standard, Aegis Dual Colour, Aegis Product Type Products Configurations (available Take-Downs, Traffic Director, Steady On, Alley Lights Dimensions Length 1522mm (60") Default Functions Left-Side Alley Light, Hi/Low Power (50%, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Take-Down Lights (2 heads, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm Dimensions Width 310mm Colour Type Dual Colour Maximum Current 27.3A@12.8VDC Lightbar Length 1522mm (59.9") LED Colour Blue LEDs, Red LEDs Fuse Rating 37A Cover Colour Blue Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB2), ECE-R65 (TR2), SAE J845 Class 1, California Title 13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 72x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 16x Dummy Plates Warranty 5 Year Warranty -
