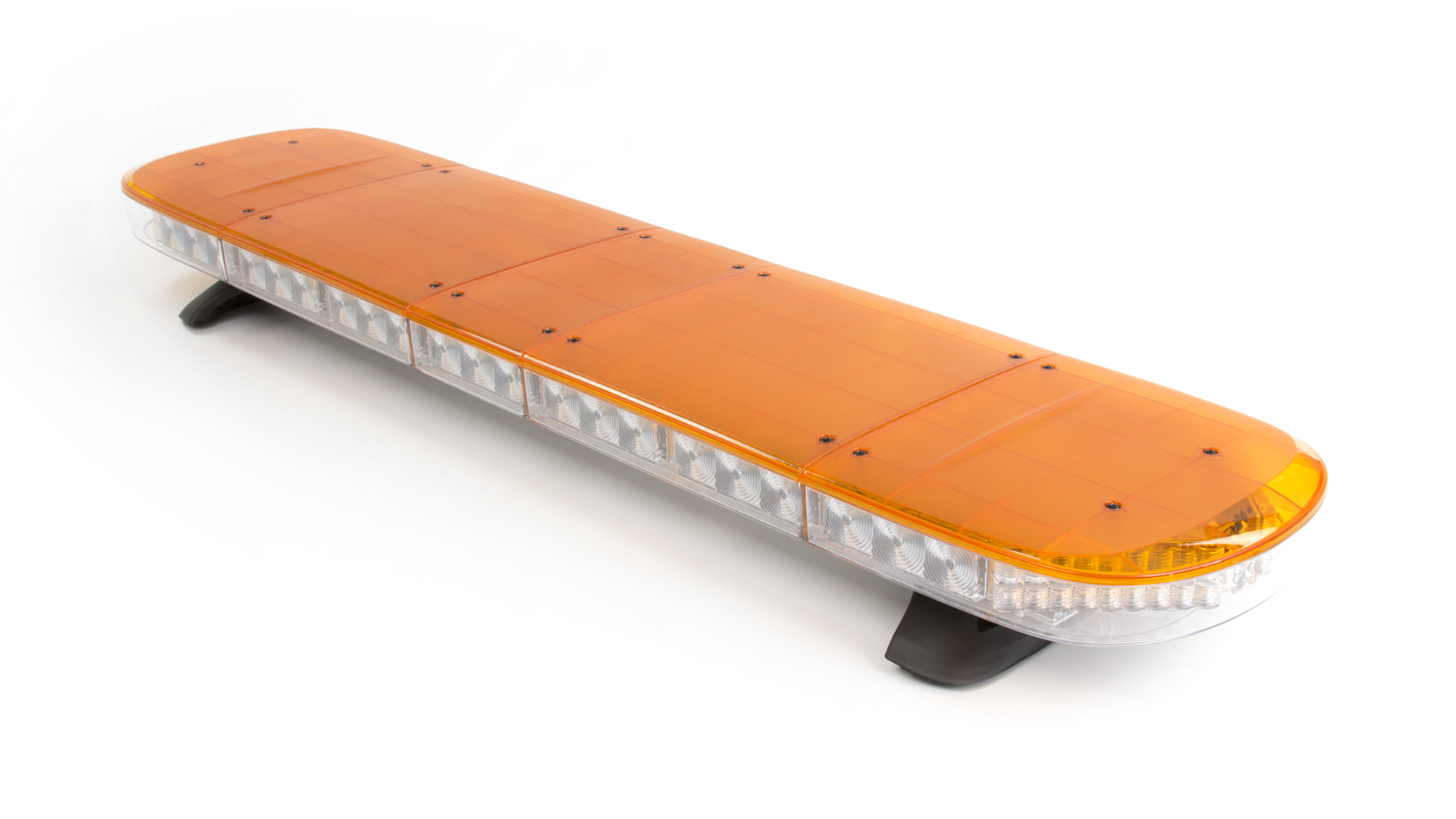

Aegis Dual Colour Lightbar, 1366mm (53.8″), 72x AMBER/BLUE LEDs, AMBER COVERS, ECE R10, ECE R65 (TA2/TB2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications
Product code 06060145 Product Name Aegis DC 1366mm (53.8") - ABA (12VDC) Categories Warning Lamps, Lightbars, Aegis DC Standard, Aegis Dual Colour, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs, Traffic Director, Steady On Dimensions Length 1372mm (54") Default Functions Front Cut-Off, Rear Cut-Off, Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Take-Down Lights (2 heads, Left-Side Alley Light, Hi/Low Power (50%, Flashing Alleys & Take-Downs, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm Dimensions Width 310mm Colour Type Dual Colour Maximum Current 25.3A@12.8VDC Lightbar Length 1366mm (53.8") LED Colour Amber LEDs, Blue LEDs Fuse Rating 35A Cover Colour Amber Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), ECE-R65 (TB2), SAE J845 Class 1, California Title 13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 72x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 14x Dummy Plates Warranty 5 Year Warranty -
