The Right Ideas to Bright Ideas
ECE-R65 Approved Class 2, Full Function Programmable Software; Traffic Director, Alleys, Take-Downs. D-Fuser Optics. Available in a variety of colours. 5 Year Warranty, 12~24VDC.
Single colour d-fuser optics, 12LED corner lightheads and 6LED middle lightheads, clear or coloured UV stabilised lenses, ECE R10 & ECE R65 Class 2 certified, 12 or 24VDC. Available in amber, blue, red, green or white.
H002 Speaker, single colour d-fuser optics, 12LED corners and 6LED middle lightheads, clear or coloured UV stabilised lenses, ECE R10 & ECE R65 Class 2 certified, 12 or 24VDC. Available in amber, blue, red, green or white.
Which Legion HE is best for you?
Our range of Legion HE lightbars consists of a standard Legion HE, a Legion HE with an Illuminated Centre and a Legion HE with an Integrated Speaker.

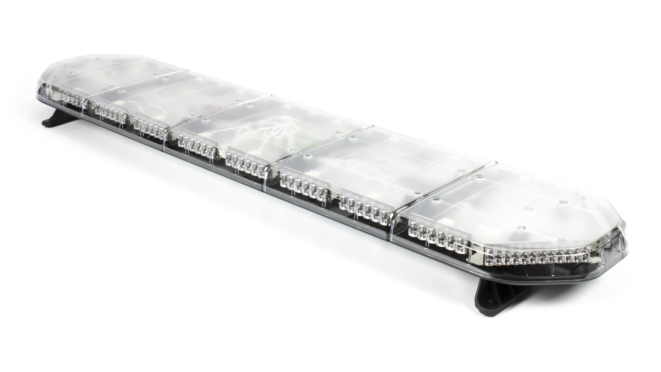

Legion HE Standard
D-Fuser or Reflector optics for superior 360 degree light spread. Optional Takedowns and Alley lights are available. Built-in and programmable Flash Patterns. Aluminium extrusion for optimal heat dissipation. Now available with optional auto-dimming sensor. 12~24VDC.
Legion HE Illuminated Centre
The Illuminated Centre Section allows you to place a word or words, logo, company name etc onto an opal white section on the centre of your lightbar, the section which will be illuminated is approx. 30mm high. It can be illuminated independently of the warning signal so will illuminate your characters in the dark, most installers will connect the Illuminated Centre Section wire to the side light circuit on the vehicle so that it comes on automatically with the vehicle lights.

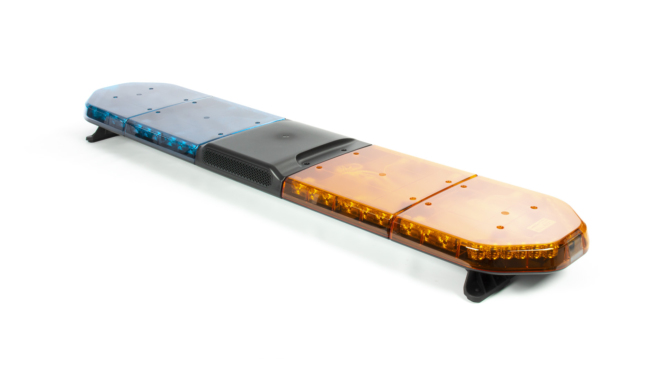

Legion HE Integrated Speaker
The H002 Integrated Speaker is designed specifically to fit inside our Legion lightbars, due to the low profile design of the Legion range, the H002 speaker also has to be very low in profile, however it isn’t short on performance due to the employment of innovative design and premium materials. It handles a full 100W in power and is the industry standard 11 Ohm resistance. This means the H002 is also compatible with the Cell2 range of siren amplifiers as well as most other units. (Please check the specification of your siren if not using a Cell2 unit)
What size is best for you?
Our collection of Legion HE Lightbars range from 60cm (24″) up to 154cm (60″) The lightbar size you should choose depends on your specific requirements as well as the shape and size of your vehicle.
Legion HE Lightbar, available sizes.
Legion HE LED Lightbars are available from 60cm (24”) to 214cm (84”) with the widest size range. They are 6cm (13”) wide and 33cm (2.3”) in height. This is the most streamline lightbar, available in 9 sizes. The Legion can be mounted onto any sized vehicle with various mounting options. An optional 4 to 28 modules can be used.
What configuration do you require?
Each Legion lightbar has a different standard configuration, whether you are looking for a standard or higher end configuration,
or even looking for an integrated speaker or illuminated centre section. We have something for you.
Which functions do you require?
Our Lightbars are designed and engineered to meet the most stringent industry requirements. With a versatile and modular design, programable software that is configurable with a number of custom functions, our Lightbars will adapt to your specific needs.
