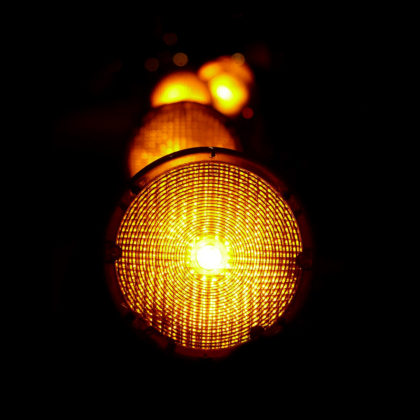

Introducing the Photon-8H Traffic Warning Light
EN12352 L8H certified high power warning output. 210mm precision optics design. Ambient Light Sensor: Automatic day / night adaptation.
Available to be equipped as warning light arrows or traffic safety trailers.
Key Features
- EN12352 L8H certified high power warning output.
- Low AMP-draw 1 LED design.
- Precision optics design for even and seamless light output.

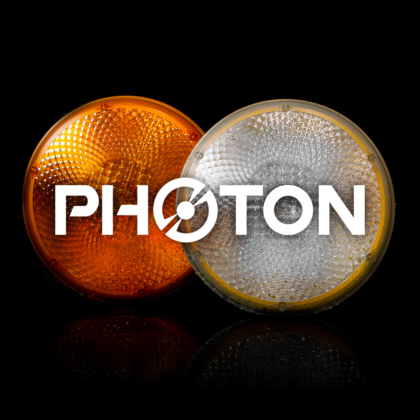

- Durable polycarbonate lens is available in amber and clear.
- Weatherproof and vibration resistant design for harsh work environment.
- Multiple units can be grouped to flash simultaneously or alternately.
- Reverse polarity protection.
Low AMP-draw 1 LED design
Precision optics design for even and seamless light output.
Flash Patterns
The Photon-8H features 3 Warning Patterns, One steady warning and 2 single flash patterns. These 2 flash patterns have auto-dim enabled and have a flash frequency of 60 FPM.
| Warning Flash Pattern | Power Consumption | Flash Frequency | |||
| 1 | Steady | – | – | ||
| 2 | Single | [1Hz] | Auto-dim Enable | 3.85 Ah/day | 60 FPM |
| 3 | Single | [1Hz] | Auto-dim Enable | – | 60 FPM |
Photon-8H Outline Drawing
The Photon-8H’s low profile makes it so desirable, measuring at only 210mm in diameter and 47.8mm deep, its ultra-compact size makes this warning system perfect for all vehicle applications where space is limited.
-
- European Conformity, RoHS, WEEE, ECE R10, EN12352 L8H
- 1800 cd
- Single Colour
- 1x LED
- ⌀210mm
-
- European Conformity, RoHS, WEEE, ECE R10, EN12352 L8H
- 2200 cd
- Single Colour
- 1x LED
- ⌀210mm
-
-
Photon-8H – AC (12~24VDC)
Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you
Photo-8H Downloads
Specification & User Manual
Cell2_Photon-8H_Specification | Cell2_Photon-8H_UserManual
