Legion FIT Split

Legion FIT Split: Designed around obstacles

Introducing our new lightbar, developed for applications where it’s necessary to ‘split’ the lightbar on a roof to allow the installation of supplementary equipment such as Roof Mounted Air Horns or ladders centrally mounted.

Explore

Expanding possibilities

The two sections are connected via a cable and environmentally sealed connector so that the normal operation and features of the standard Legion Fit lightbars are maintained.

Robust Design

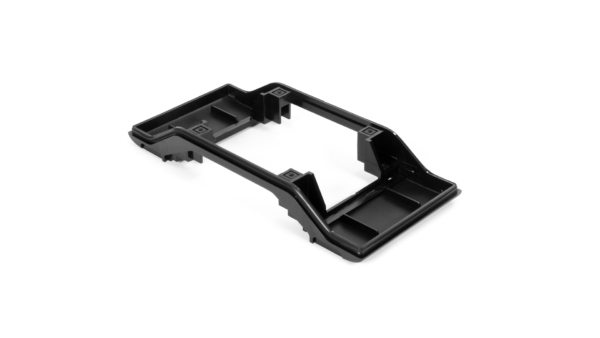

The Split Lightbar is supplied as standard with 8 x ‘rubber’ vibration isolation bobbins (4 per section) for easy and secure mounting, but any combination of Legion optional mounting solutions may be user specified to meet your individual mounting requirements.

Flash Patterns

The Legion Fit Split features a choice of 7 Warning Patterns approved to ECE Regulation 65. For more information, please download the specsheet.

1	Double (corners only)	[R65]	5	Quad (split)	[2Hz]
2	Double	[2Hz]	6	Single	[2Hz]
3	Double (split)	[2Hz]	7	Single (split)	[2Hz]
4	Quad	[2Hz]

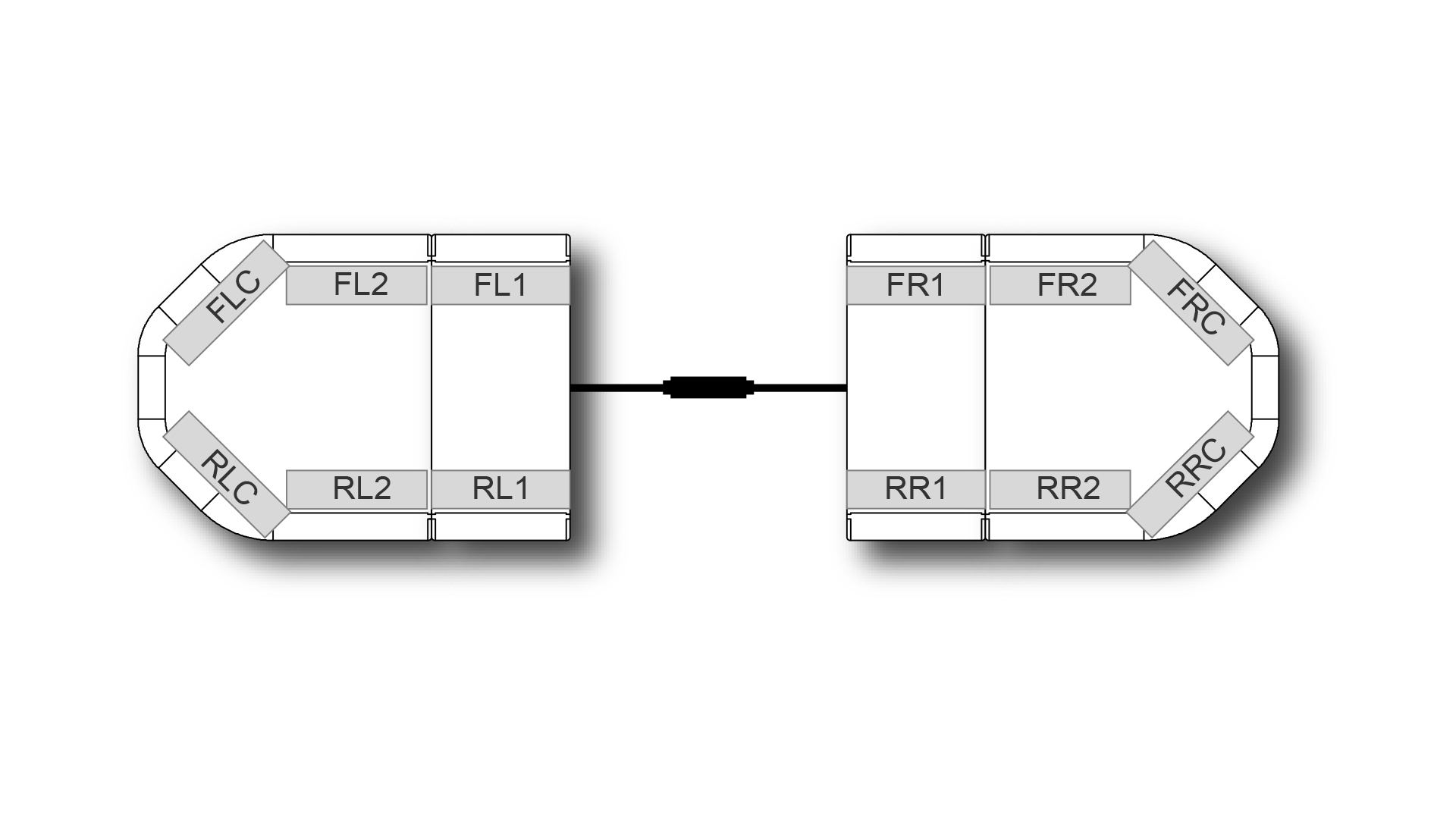

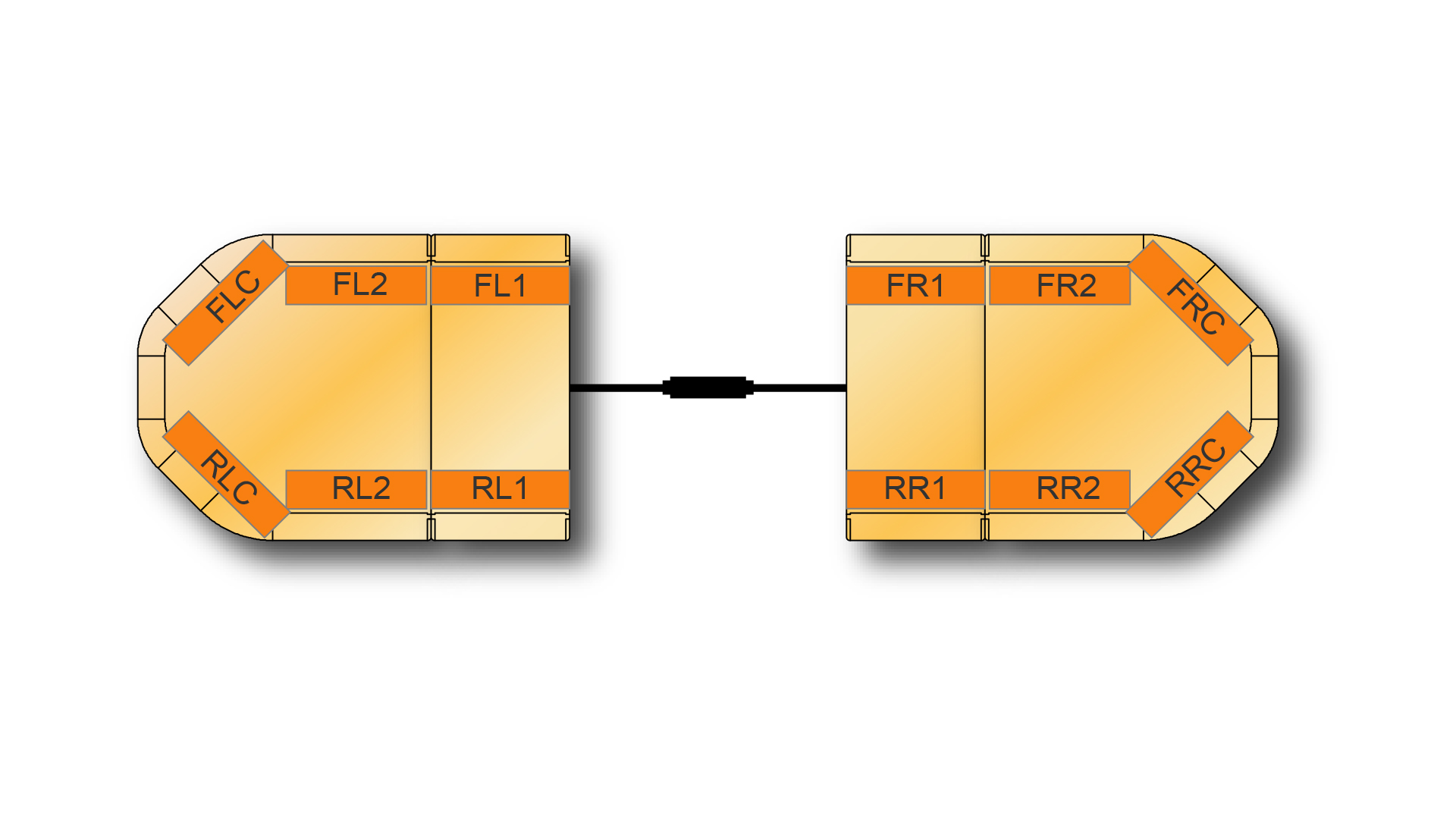

Legion Fit Split Outline Drawing

The Legion Fit Split retains its low profile of only 59 mm and is available in 0317mm and 0464mm (each module).

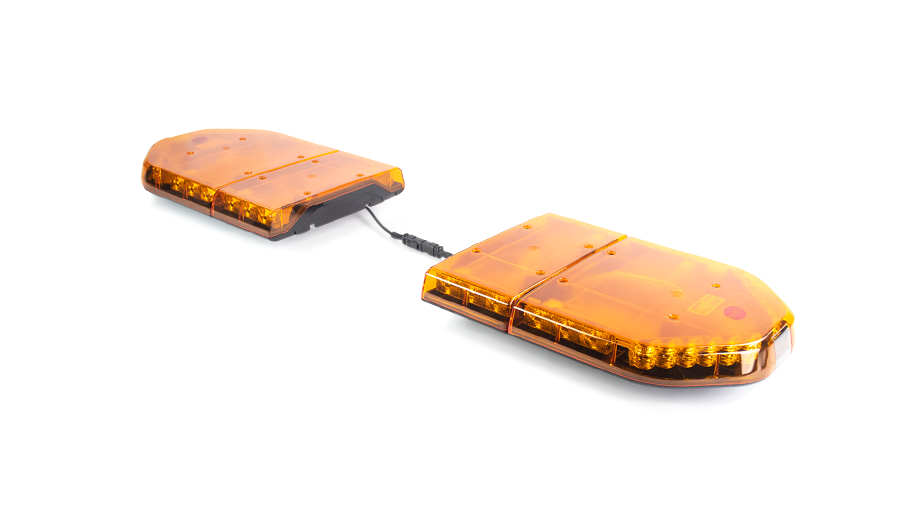

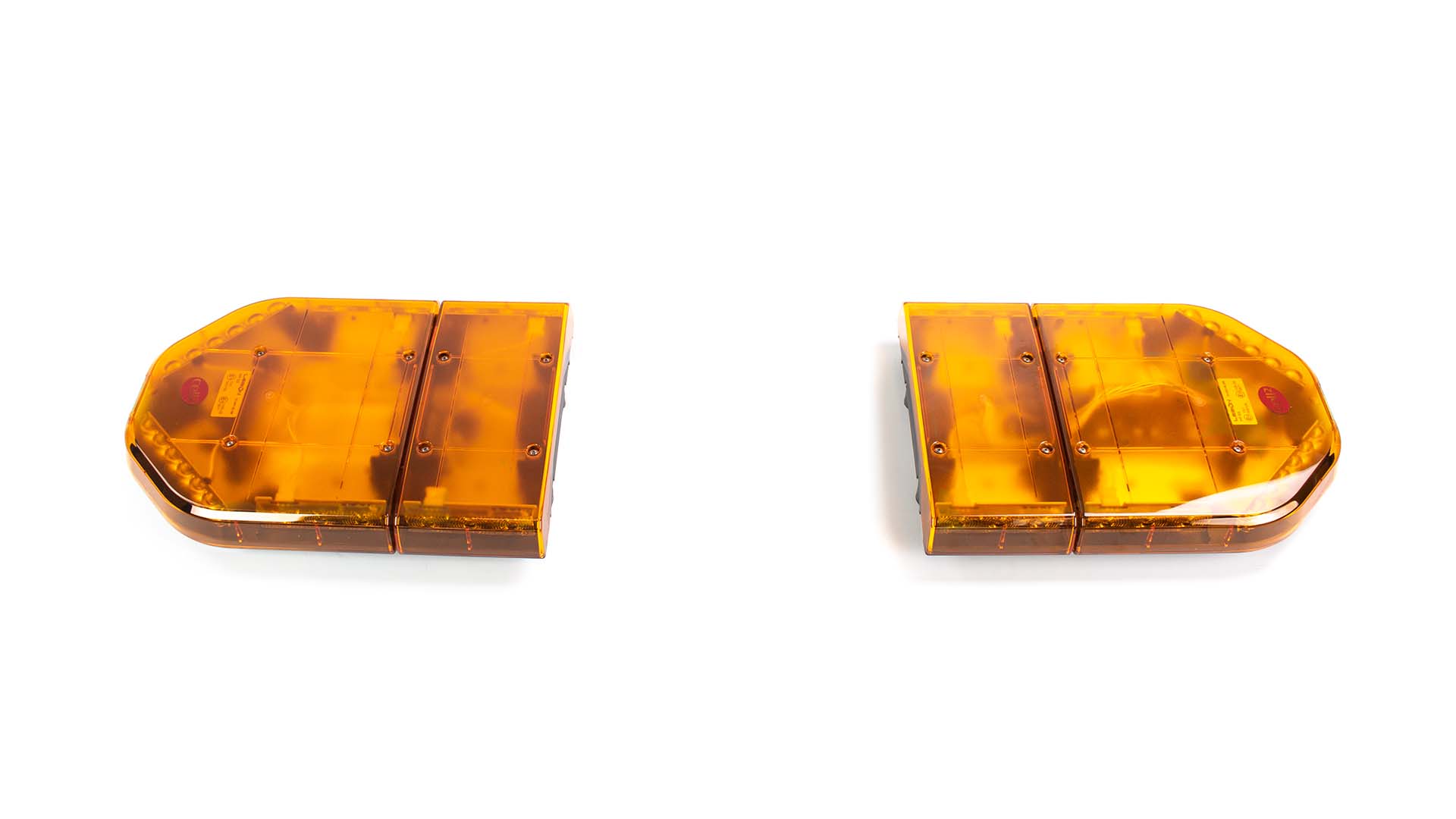

Legion FIT Split Lightbar 0464mm (18.3″) x2 – AA
- ECE R10, ECE R65 – TA1, California Title 13, SAE J845 Class 1
- Single Colour
- 48x LEDs
- 0464mm (18.5″) x2
- Amber Lens

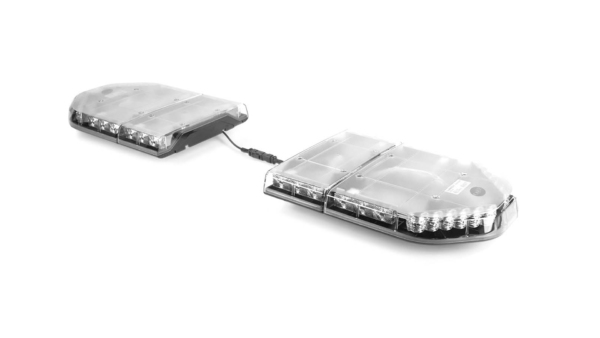

Legion FIT Split Lightbar 0464mm (18.3″) x2 – AC
- ECE R10, ECE R65 – TA1, California Title 13, SAE J845 Class 1
- Single Colour
- 48x LEDs
- 0464mm (18.5″) x2
- Clear Lens
Legion FIT Split Lightbar 0464mm (18.3″) x2 – BB
- ECE R10, ECE R65 – TB1, California Title 13, SAE J845 Class 1
- Single Colour
- 48x LEDs
- 0464mm (18.5″) x2
- Blue Lens

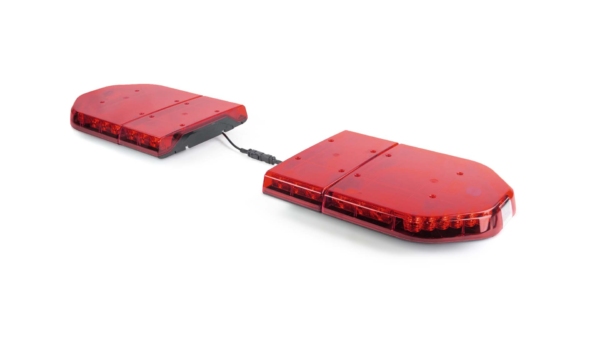

Legion FIT Split Lightbar 0464mm (18.3″) x2 – RR
- ECE R10, ECE R65 – TR1, California Title 13, SAE J845 Class 1
- Single Colour
- 48x LEDs
- 0464mm (18.5″) x2
- Red Lens
