All you need and no more!
Introducing the Kuiper LED Lightbar with all the versatility and features you need, with simplicity. With a low profile and a narrow form, this new range offers installation advantages for multiple applications. The Kuiper Lightbar is available in Fit, Fit+ and HE versions and can be customised with cruise mode, ICS, STT, Take-Down light and Alley light.
Available with Amber, Blue, Clear, Red or Opal UV-resistant lenses and Amber, Blue, Red or White LEDs.
Which is best for you?
Our range offer versatile functionalities depending on your requirements.
Kuiper High End
3+3 LED corner Lightheads, optional middle lightheads/take downs/STT/alley-lights/ICS, Cruise Mode, clear UV stabilised lenses, ECE R10 & ECE R65 Class 1 (TA1/TB1), 36 flash patterns.
Kuiper FIT+
3+3 LED corner Lightheads, optional middle lightheads, Cruise Mode, clear UV stabilised lenses, ECE R10 & ECE R65 Class 1 (TA1/TB1), 36 flash patterns.
Kuiper FIT
3+3 LED corner Lightheads, 12 ICS LEDs, optional middle lightheads/ICS, clear UV stabilised and opal lenses, ECE R10 & ECE R65 Class 1 (TA1/TB1), 31 flash patterns.
Optional Alley Lights, Take Down, STT and ICS.
Multiple configurations are available with the Kuiper due to its extremely versatile software.
Kuiper FIT | Kuiper FIT+ | Kuiper HE
Customise it to your needs

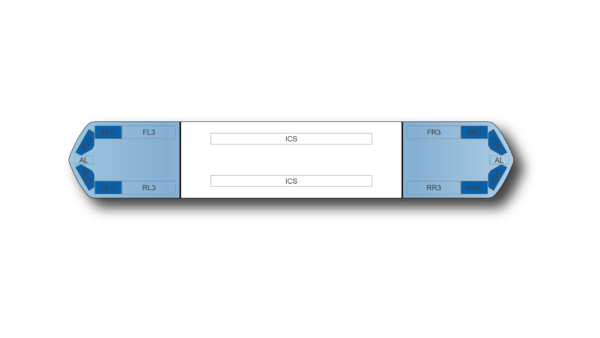

The Kuiper series can be customised with optional lightheads:
- Corner Lighthead
- Illuminated Centre Section (ICS)
- Middle Lighthead (Short)
- Middle Lighthead (Standard)
Kuiper Flash Patterns
The Kuiper Series Lightbar features a choice of 36 Warning Patterns.
| 1 | Double [2Hz] | All | 19 | Side-by-Side Ultra | NA |
| 2 | Quad [2Hz] | All | 20 | Rotator1 (fast) | NA |
| 3 | Single [2Hz] | All | 21 | Rotator2 (slow) | NA |
| 4 | Double (Corners) [2Hz] | All | 22 | Double [2Hz] | Split |
| 5 | Quad (Corners) [2Hz | All | 23 | Quad [2Hz] | Split |
| 6 | Single (Corners) [2Hz] | All | 24 | Single [2Hz] | Split |
| 7 | Random | All | 25 | Double (Corners) [2Hz] | Split |
| 8 | Single | All | 26 | Quad (Corners) [2Hz] | Split |
| 9 | Double | All | 27 | Single (Corners) [2Hz] | Split |
| 10 | Quad | All | 28 | Random | Split |
| 11 | Quint | All | 29 | Single | Split |
| 12 | Mega | All | 30 | Double | Split |
| 13 | Ultra | All | 31 | Quad | Split |
| 14 | Cruise (Corners) | All | 32 | Quint | Split |
| 15 | Cruise | All | 33 | Mega | Split |
| 16 | Single-Quad | All | 34 | Ultra | Split |
| 17 | Single H/L | All | 35 | Single-Quad | Split |
| 18 | Side-by-Side Single | NA | 36 | Single H/L | Split |
Dimensions
The Kuiper is 58.5mm in height and 215mm wide, it’s available in 4 different lengths, 1075mm, 1222mm, 1369mm or 1516mm
-
- CISPR25, ECE R10, California Title 13, SAE J845 Class 1
- Single Colour
- 24x LEDs
- 1075mm (42″)
- Clear Lens
-
- CISPR25, ECE R10, ECE R65 – TA1, California Title 13, SAE J845 Class 1
- Single Colour
- 24x LEDs
- 1370mm (54″)
- Amber Lens
-
- CISPR25, ECE R10, ECE R65 – TB1, California Title 13, SAE J845 Class 1
- Single Colour
- 24x LEDs
- 1222mm (48″)
- Blue Lens, Opal Lens
-
- CISPR25, ECE R10, ECE R65 – TB1, California Title 13, SAE J845 Class 1
- Single Colour
- 24x LEDs
- 1370mm (54″)
- Blue Lens
Kuiper FIT+ 1075mm (42″) – RC
Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you
Kuiper FIT+ Lightbar, 1075mm (42″), 24x RED LEDs, CLEAR LENSES, ECE R10, IPX5, Linear Optics, 36 Flash Patterns, Single Harness (4 Function/2 Power), Standard Feet, 12~24VDC.
Kuiper Downloads
Specification & User Manual
| Kuiper HE | Specification  |
User Manual |
| Kuiper FIT+ | Specification |
User Manual |
| Kuiper FIT | Specification |
User Manual |
