Introducing the Octa-Fit Warning Lighthead

The Octa-Fit’s small footprint and compact design make it suitable for installation in tight or limited space. Approved to ECE R10 & ECE R65 Class 1, with 1LED and a clear lens, 9 flash patterns, 12~24VDC Available in amber, blue, red and white. Small-size lighthead for installation on side mirrors, tailgates, boot lids or door panels. Perfect product for unmarked /undercover vehicles to facilitate covert operation and as additional warning lights.

Explore

ECE R65 (XAB1, XB1, XR1); ECE R10
IP67, IP69K

Self-contained flasher

This module does not require an external flasher and allows the synchronisation of multiple units in simultaneous or alternating flash.

Key Features

  • “OFF Override” wire allows turn signal to override warning.
  • Multi-voltage input 12~24VDC.
  • Reverse polarity protection.

Application Examples

The lightheads must be set up in a set of four units to meet ECE R65 Cat. X. (Amber, Blue, Red)
Follow the diagram and position the lighthead within the required distance and angle to fulfill the approval requirement.

Flash Patterns

The Octa-Fit offers 9 flash patterns, the Double Flash (2Hz) is approved to ECE Regulation 65.

1 Double [2Hz] [R65]* 6 Steady EF**
2 Single [2Hz] 7 Single-Quad
3 Triple [2Hz] 8 Single H/L
4 Quad [2Hz] 9 Single-Triple-Quint
5 Random
*Actual approval will be based on the model ordered.
** For use with external flasher controller.

Octa-Fit Outline Drawing

With a width of just 2mm, this module leaves only 8.5mm of it’s centre visible when installed.

Please note: This drawing is NOT to scale.

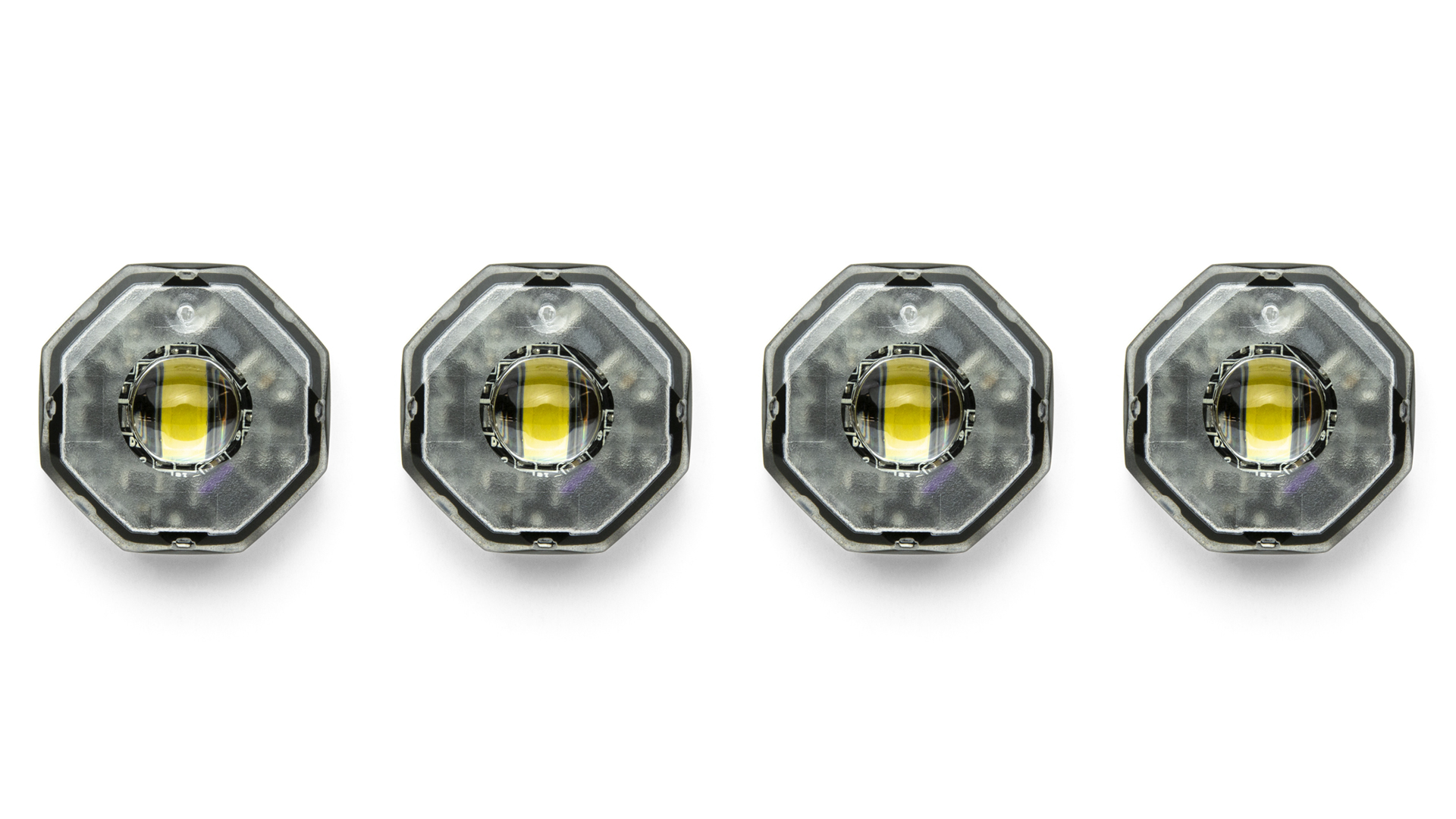

  • OF01 (4 Lightheads) – Amber

    • ECE-R10, ECE-R65 (XA1)
    • Single Colour
    • 1x LED (Per Lighthead)
    • Clear Lens
    • 12VDC~24VDC

    • OF01 (4 Lightheads) – Amber

    Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you

    EAN: 02060750

    OF01 (Octa-Fit) Warning Lightheads x4, SINGLE COLOUR, 1x AMBER LED (per lighthead), CLEAR LENS, ECE R10, ECE R65 (XA1), IP67, IP69K, 9 Flash Patterns, Pigtail Cable, 12~24VDC.

  • OF01 (4 Lightheads) – Blue

    • ECE-R10, ECE-R65 (XB1)
    • Single Colour
    • 1x LED (Per Lighthead)
    • Clear Lens
    • 12VDC~24VDC

  • OF01 (4 Lightheads) – Red

    • ECE-R10, ECE-R65 (XR1)
    • Single Colour
    • 1x LED (Per Lighthead)
    • Clear Lens
    • 12VDC~24VDC

  • OF01 (2 Lightheads) – White

    • ECE-R10
    • Single Colour
    • 1x LED (Per Lighthead)
    • Clear Lens
    • 12VDC~24VDC

Octa FIT Downloads

Specification & User Manual

Cell2_OctaFit_Specification

Cell2_OctaFit_UserManual
