Introducing the B23 LED Beacon

Ultra-compact and low profile design for discreet placement or limited installation space. Certified powerful ECE R65 (TA1) performance provides optimum 360 degree coverage. Multiple units can be grouped to flash simultaneously or alternately. Durable polycarbonate lens is available in amber and clear.

Explore

Optimum 360 degree coverage

Certified powerful ECE R65 (TA1) performance.

Key Features

  • Ultra-compact and low-profile design for discreet placement or limited installation space.
  • Certified powerful ECE R65 (TA1) performance provides optimum 360 degree coverage.
  • Durable polycarbonate lens is available in amber and clear.
  • Weatherproof design: 100% sealed rated at IPX7.
  • Vibration resistant design with aluminium base.
  • Multiple units can be grouped to flash simultaneously or alternately.
  • Multiple mounting options for all vehicle applications
  • 50,000 hours rated Long-Life LED.

Exceeds ECE R65 Class 1

Certified powerful performance provides optimum 360 degree coverage.

Discover

Flash Patterns

The B23 is the most diverse Warning Lighthead in the market, offering 1 warning patterns approved to ECE R65 and a further 11 patterns. This edition features 12 European Warning Patterns.

1 Double [R65] 7 Quad [SAE]
2 Single [2Hz] 8 Quint [SAE]
3 Quad [2Hz] 9 Mega
4 Steady Scene 10 Ultra [SAE]
5 Single [SAE] 11 Single-Quad
6 Double [SAE] 12 Single H/L
*Actual approval will be based on the model ordered.

B23 Outline Drawing

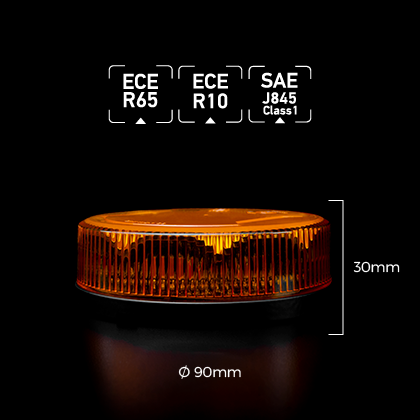

The B23’s low profile makes it so desirable, measuring at only 90mm in diameter and 30mm high, its a ultra-compact size makes this warning system perfect for all vehicle applications where space is limited.

Please note: This drawing is NOT to scale.

  • B23 Beacon – AA (1-Bolt Mount)

    • ECE-R10, ECE-R65 (TA1), SAE J845 Class 1
    • Single Colour
    • ⌀90mm (3.54″)
    • Amber Lens
    • IPX7

    New Product

    • B23 Beacon – AA (1-Bolt Mount)

    Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you

    EAN: 05150076

    B23 Beacon, SINGLE COLOUR, 16x AMBER LEDs, AMBER LENS, ECE R10, ECE R65 (TA1), SAE J845 Class 1, IPX7, 1-Bolt Mount, Pigtail Cable, 12 Flash Patterns, 12~24VDC.

  • B23 Beacon – AC (1-Bolt Mount)

    • ECE-R10, ECE-R65 (TA1), SAE J845 Class 1
    • Single Colour
    • ⌀90mm (3.54″)
    • Clear Lens
    • IPX7

    New Product

  • B23 Beacon – AA (3-Bolt Mount)

    • ECE-R10, ECE-R65 (TA1), SAE J845 Class 1
    • Single Colour
    • ⌀90mm (3.54″)
    • Amber Lens
    • IPX7

    New Product

  • B23 Beacon – AC (3-Bolt Mount)

    • ECE-R10, ECE-R65 (TA1), SAE J845 Class 1
    • Single Colour
    • ⌀90mm (3.54″)
    • Clear Lens
    • IPX7

    New Product

B23 Downloads

Specification & User Manual

Cell2_B23_Specification

Cell2_B23_UserManual
